Apply, override, and remove a theme

Apply reusable defaults, preserve an intentional local override, and remove the active theme.

Prerequisites

Use the Getting Started browser module setup, install the full ggaction entry, and provide <canvas id="chart"></canvas>. This complete example includes its data and imports. These APIs require ggaction 0.0.15 or later; check the documentation version for release compatibility.

Decision sequence: scatterplot → theme and mark-style editing.

Complete program

import { chart, hconcat } from "ggaction";
import { render } from "ggaction";

export function createCustomThemeWorkflow() {
  const base = chart()
    .createCanvas({ width: 360, height: 280, margin: 60 })
    .createData({ values: [{ x: 1, y: 2 }, { x: 3, y: 4 }] })
    .createScatterPlot({ id: "points", x: "x", y: "y" });
  const themed = base.applyTheme({ theme: { base: "light", tokens: {
    background: "#f5f3ff", mark: "#7c3aed", axis: "#5b21b6"
  } } });
  const overridden = themed.editPointMark({ target: "points", fill: "#ea580c" });
  const restored = overridden.removeTheme();
  return hconcat({ programs: [
    themed.createTitle({ text: "Custom theme" }),
    overridden.createTitle({ text: "Orange override" }),
    restored.createTitle({ text: "Theme removed" })
  ], gap: 16 });
}

const program = createCustomThemeWorkflow();
render(program, document.querySelector("#chart").getContext("2d"));

Expected result

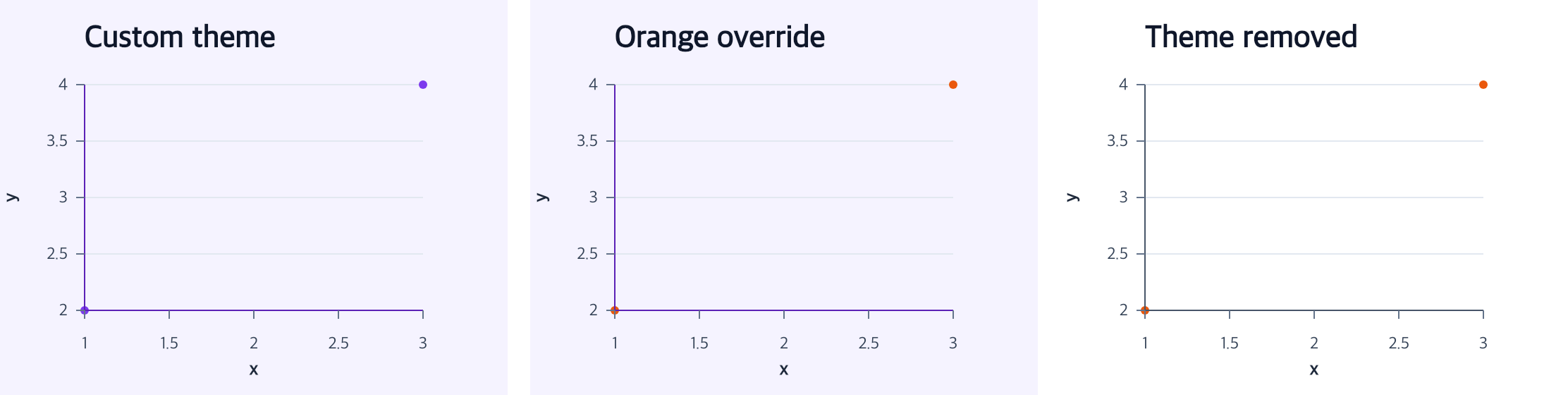

The first panel uses a lavender background and purple default marks. The second changes those marks to orange. The third restores baseline theme defaults while retaining the explicit orange fill.

Boundaries and failure behavior

Theme defaults and explicit mark properties have separate precedence. Removing a theme does not undo the user’s local override. On a composition, choose the documented scope deliberately; this example themes independent child programs before composition. Unknown token names fail without changing the input.
