Revise facet source and shared guides

Replace a facet’s retained source program, rename its headers, and arrange outer axes with a shared categorical legend.

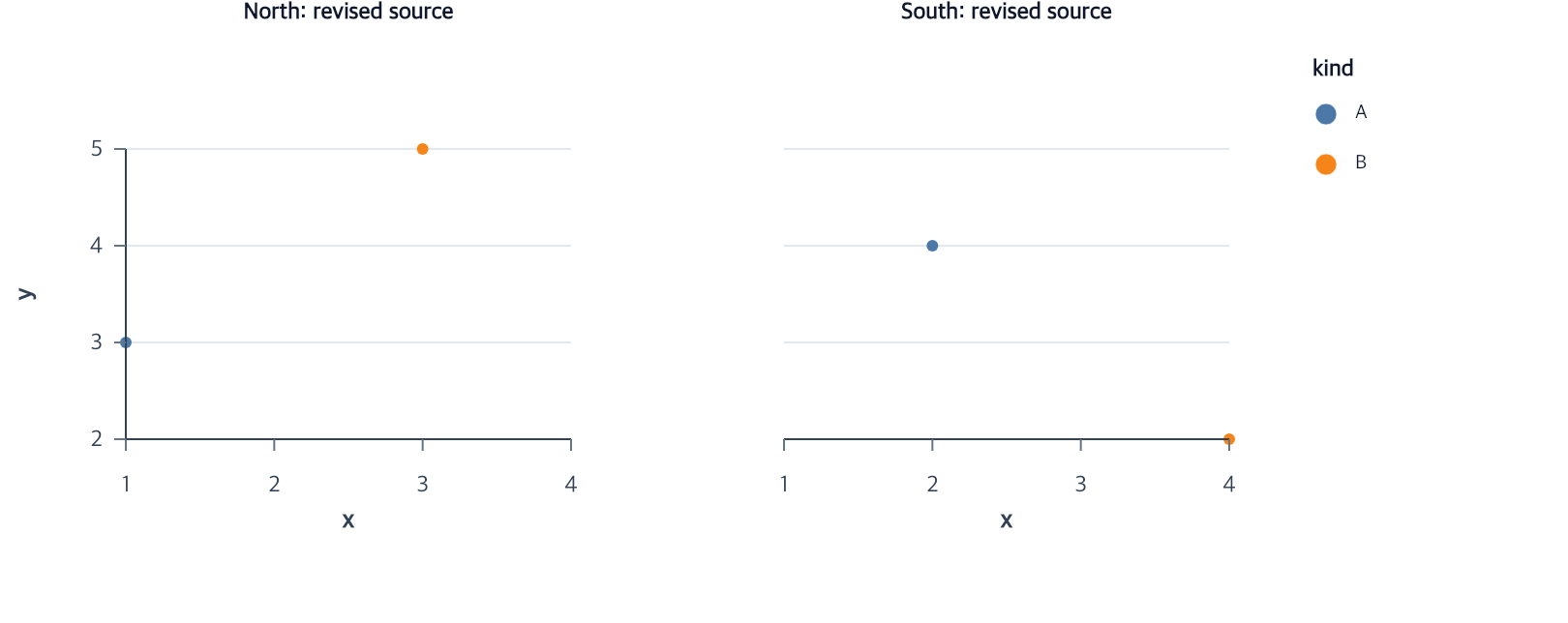

Revise facet source and shared guides shown as an executable chart workflow
Revise facet source and shared guides. Each panel is generated from the complete program below.

Prerequisites

Use the Getting Started browser module setup, install the full ggaction entry, and provide <canvas id="chart"></canvas>. This complete example includes its data and imports. These APIs require ggaction 0.0.15 or later; check the documentation version for release compatibility.

Decision sequence: faceting → source replay → header and guide policies.

Complete program

import { chart } from "ggaction";
import { render } from "ggaction";

export function createFacetSourceWorkflow() {
  function source(values) {
    return chart()
      .createCanvas({ width: 320, height: 300, margin: { top: 55, right: 25, bottom: 95, left: 65 } })
      .createData({ id: "rows", values })
      .createScatterPlot({ id: "points", x: "x", y: "y", color: "kind",
        guides: { legend: false } });
  }
  const values = [
    { panel: "N", kind: "A", x: 1, y: 2 }, { panel: "N", kind: "B", x: 3, y: 4 },
    { panel: "S", kind: "A", x: 2, y: 3 }, { panel: "S", kind: "B", x: 4, y: 1 }
  ];
  const before = source(values).facet({ field: "panel", values: ["N", "S"],
    scales: { x: "shared", y: "shared", color: "shared" },
    guides: { axes: "each", legend: "shared" }, gap: 20 });
  return before
    .editFacetSource({ program: source(values.map(row => ({ ...row, y: row.y + 1 }))) })
    .editFacetHeaders({ role: "column", labelMap: [
      { value: "N", label: "North: revised source" },
      { value: "S", label: "South: revised source" }
    ], align: "center", side: "top" })
    .editFacetGuides({ axes: "outer", legend: "shared" });
}

const program = createFacetSourceWorkflow();
render(program, document.querySelector("#chart").getContext("2d"));

Expected result

Both panels rebuild from rows whose y values increased by one. Raw keys N and S remain unchanged while headers display North and South. The parent retains a shared color legend and uses outer positional axes.

Boundaries and failure behavior

Facet children derive from the source recipe and cannot be replaced with concat child editors. Header display maps do not rename data values or change grouping. side and align require an explicit header role. Shared guides require compatible shared channel semantics; they are not inferred by matching labels.
